Named vector color support for desplot & ggdesplot

[SchmidtPaul]

Summary

Implements named vector support for col.regions and col.text parameters in both desplot() and ggdesplot().

Closes #10

This enhancement allows users to specify colors that match factor levels by name rather than positional order, similar to ggplot2::scale_color_manual().

Problem

As described in #10, colors previously had to be provided in the same order as factor levels:

# Factor levels: A, B, C
# Colors MUST be in this exact order
col.regions <- c("red", "blue", "green")  # A=red, B=blue, C=green

If you wanted to specify colors in a different order, you had to manually reorder them to match the factor levels.

Solution
Named vectors now allow order-independent color specification:

Features
✅ Order-independent matching: Colors match factor levels by name, not position
✅ Graceful fallback: Missing names trigger a warning and fall back to positional matching with R's standard vector recycling
✅ Backward compatible: Unnamed vectors work exactly as before
✅ Works for both: desplot() (lattice) and ggdesplot() (ggplot2)
✅ Two parameters: Supports both col.regions (fill colors) and col.text (outline colors)

Implementation Details
Modified files:

R/desplot.R: Lines 413-429 (col.regions), Lines 565-580 (col.text)
R/ggdesplot.R: Lines 262-278 (col.regions), Lines 407-422 (col.text)
test_named_colors.R: Comprehensive test suite
Edge cases handled:

✅ Extra names (ignored)
✅ Partial names (warns and falls back)
✅ NULL names (original behavior)

Reprex

# Test Script for Named Vector Color Support - Issue #10
# devtools::install()
library(desplot)

# Simple test data: 2 rows x 3 columns, 3 factor levels
test_data <- data.frame(
  row = rep(1:2, each = 3),
  col = rep(1:3, times = 2),
  treat = factor(rep(c("A", "B", "C"), length.out = 6))
)

# TEST 1: Named vector - forward order
my_colors <- c("skyblue", "pink", "lightgreen")
names(my_colors) <- c("A", "B", "C")
desplot(
  test_data,
  treat ~ col * row,
  col.regions = my_colors,
  main = "Test 1: Named forward",
  gg = FALSE
)

desplot(
  test_data,
  treat ~ col * row,
  col.regions = my_colors,
  main = "Test 1: Named forward (gg)",
  gg = TRUE
)

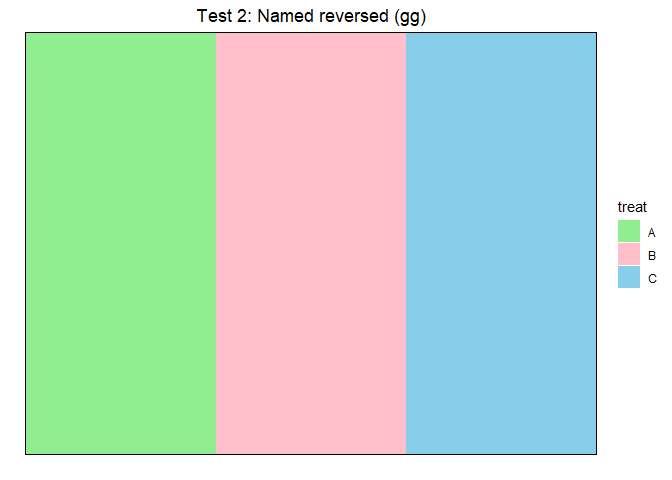

# TEST 2: Named vector - reversed order (KEY TEST from issue #10)
my_colors_rev <- c("skyblue", "pink", "lightgreen")
names(my_colors_rev) <- c("C", "B", "A") # REVERSED!
desplot(
  test_data,
  treat ~ col * row,
  col.regions = my_colors_rev,
  main = "Test 2: Named reversed",
  gg = FALSE
)

desplot(
  test_data,
  treat ~ col * row,
  col.regions = my_colors_rev,
  main = "Test 2: Named reversed (gg)",
  gg = TRUE
)

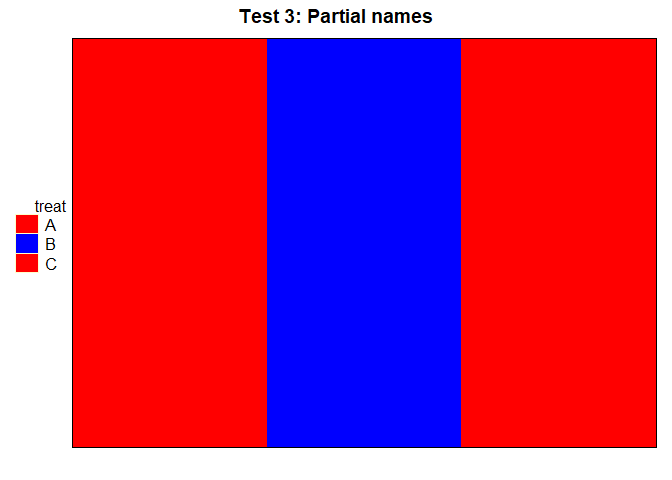

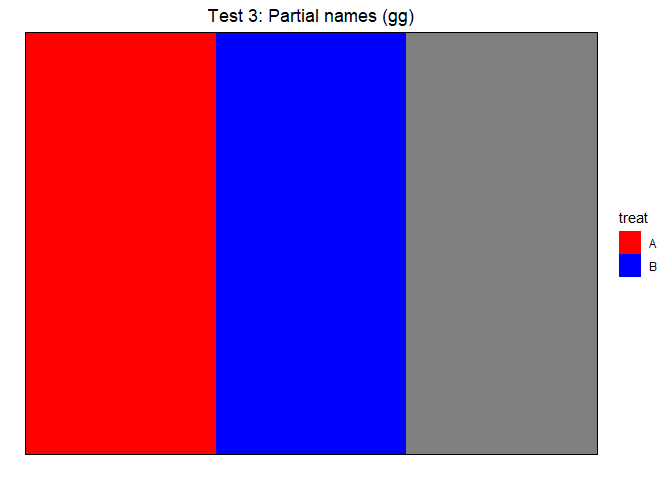

# TEST 3: Partial names (should warn and fallback)
partial_colors <- c("red", "blue")
names(partial_colors) <- c("A", "B") # Missing C
desplot(
  test_data,
  treat ~ col * row,
  col.regions = partial_colors,
  main = "Test 3: Partial names",
  gg = FALSE
)
#> Warning in desplot(test_data, treat ~ col * row, col.regions = partial_colors,
#> : col.regions: Not all factor levels found in provided names. Missing: C.
#> Falling back to positional matching.

desplot(
  test_data,
  treat ~ col * row,
  col.regions = partial_colors,
  main = "Test 3: Partial names (gg)",
  gg = TRUE
)
#> Warning in ggdesplot(form = form, data = data, num.string = num.string, :
#> col.regions: Not all factor levels found in provided names. Missing: C. Falling
#> back to positional matching.

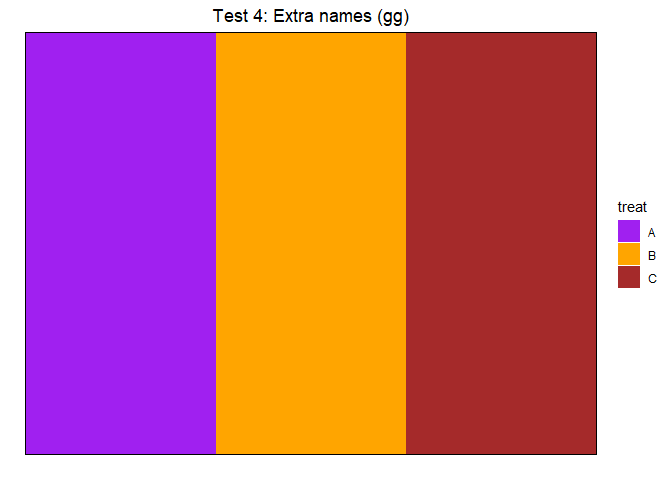

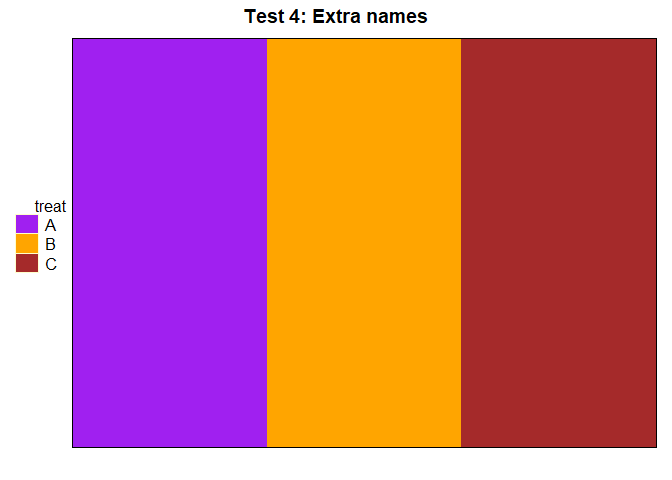

# TEST 4: Extra names (should work, extras ignored)
extra_colors <- c("purple", "orange", "brown", "yellow")
names(extra_colors) <- c("A", "B", "C", "D") # D doesn't exist
desplot(
  test_data,
  treat ~ col * row,
  col.regions = extra_colors,
  main = "Test 4: Extra names",
  gg = FALSE
)

desplot(
  test_data,
  treat ~ col * row,
  col.regions = extra_colors,
  main = "Test 4: Extra names (gg)",
  gg = TRUE
)

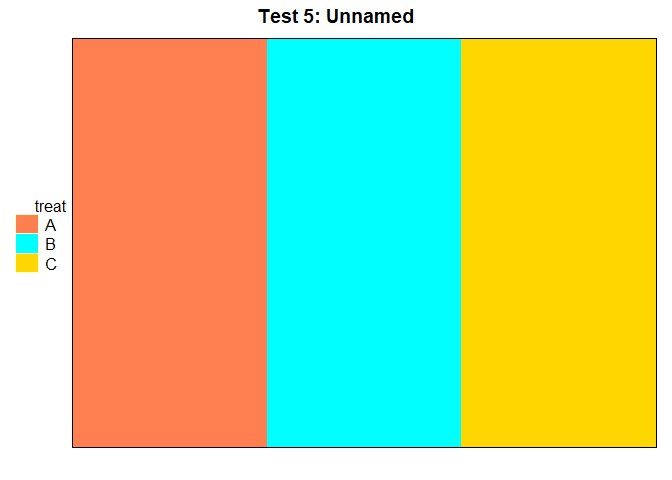

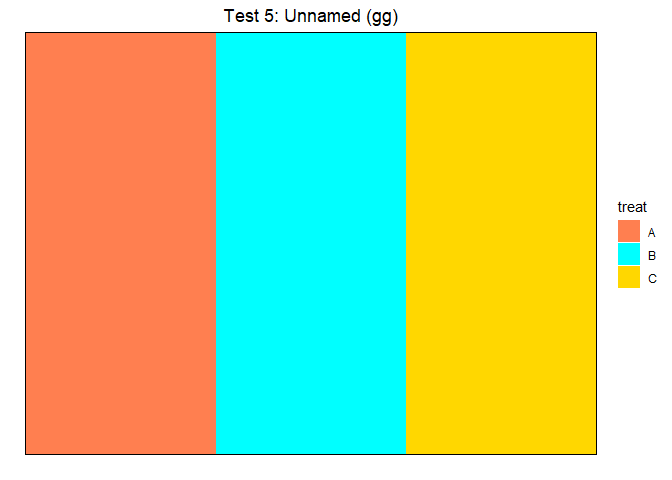

# TEST 5: Unnamed vector (backward compatibility)
unnamed_colors <- c("coral", "cyan", "gold")
desplot(
  test_data,
  treat ~ col * row,
  col.regions = unnamed_colors,
  main = "Test 5: Unnamed",
  gg = FALSE
)

desplot(
  test_data,
  treat ~ col * row,
  col.regions = unnamed_colors,
  main = "Test 5: Unnamed (gg)",
  gg = TRUE
)

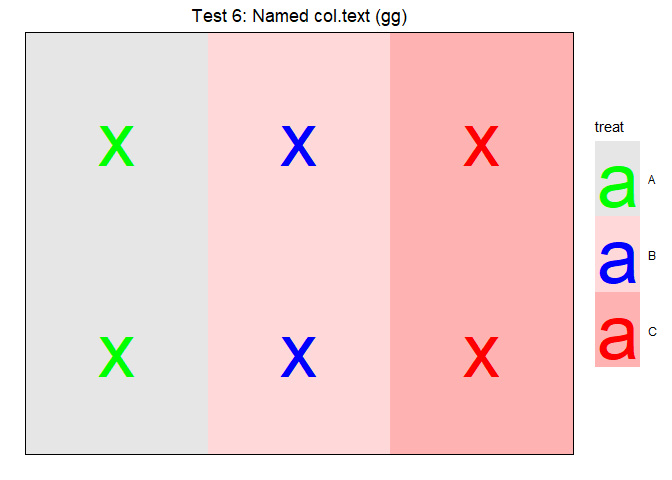

# TEST 6: Named col.text
text_colors <- c("red", "blue", "green")
names(text_colors) <- c("C", "B", "A") # Reversed
desplot(
  test_data,
  treat ~ col * row,
  col = treat,
  col.text = text_colors,
  cex = 5,
  main = "Test 6: Named col.text",
  gg = FALSE
)

desplot(
  test_data,
  treat ~ col * row,
  col = treat,
  col.text = text_colors,
  cex = 5,
  main = "Test 6: Named col.text (gg)",
  gg = TRUE
)

^{Created on 2025-11-14 with reprex v2.1.1}

[kwstat]

Thanks
