Jenkins plugin to review code and run tests on Drupal.

Screenshots

Ploting results

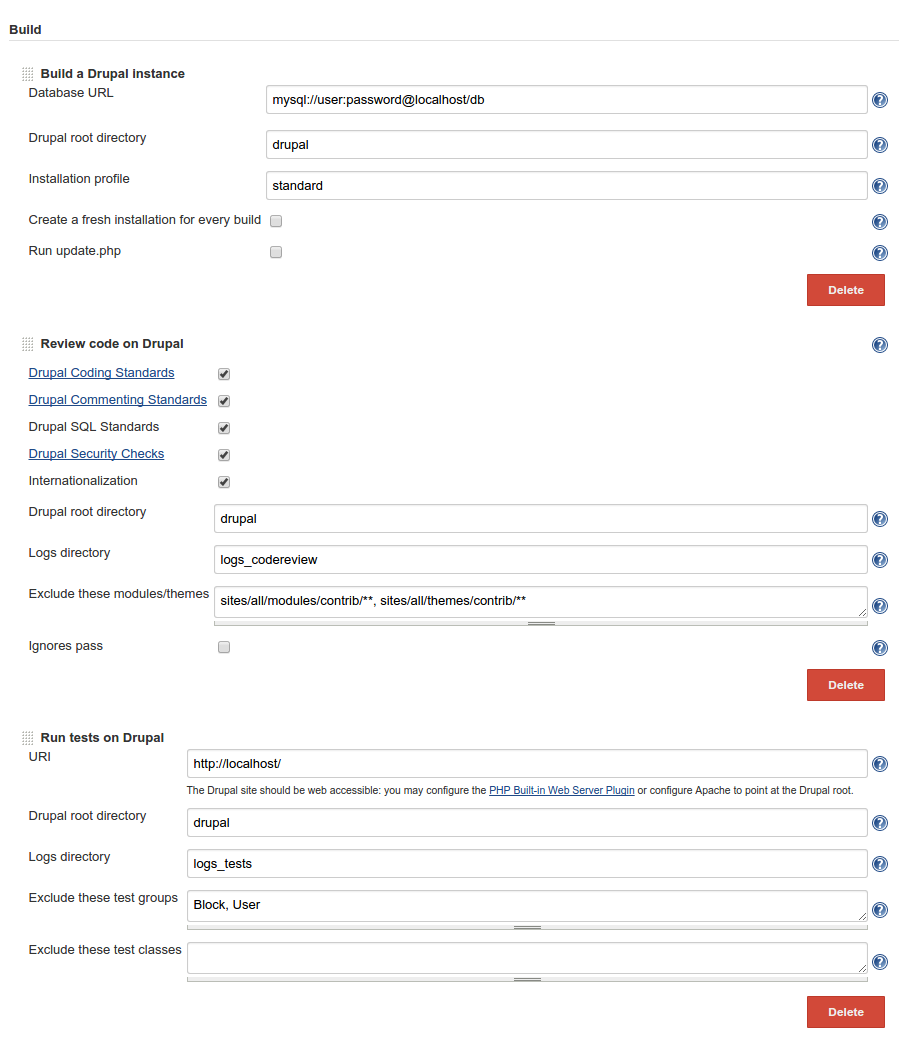

Administration interface

Quick start

• Install drush 7+ globally or configure the path to Drush on http://<jenkins-server>/configure
• Install Checkstyle, JUnit and PHP Built-in Web Server
• Create a local database: CREATE DATABASE db;
• Create a Freestyle project that looks like this, or create a Drupal project
• Update the database URL

Compilation

• git clone https://github.com/jenkinsci/drupal-developer-plugin
• cd drupal-developer-plugin/
• git checkout tags/drupal-developer-0.1
• mvn clean install -DskipTests=true

Installation

Install depdendencies

http://<jenkins-server>/pluginManager/:

• SCM API
• Checkstyle, JUnit and PHP Built-in Web Server are not required but are relevant

Install the plugin

Either from the command line:

• wget http://<jenkins-server>/jnlpJars/jenkins-cli.jar
• java -jar jenkins-cli.jar -s http://<jenkins-server>/ install-plugin ./drupal-developer.hpi
• /etc/init.d/jenkins restart

Or from the web interface:

• Go to http://<jenkins-server>/pluginManager/advanced
• Upload ./target/drupal-developer.hpi
• Restart Jenkins

Usage

1. Create Local Database

• CREATE DATABASE db;

2. Install drush 7+

• git clone https://github.com/drush-ops/drush.git /var/lib/jenkins/tools/drush
• cd /var/libs/jenkins/tools/drush
• git checkout tags/7.0.0-rc2
• curl -sSL https://getcomposer.org/installer | php
• php composer.phar install
• Go to http://<jenkins-server>/configure
• Under Drush installations, set Path to Drush home to /var/lib/jenkins/tools/drush

3. Create Project

Create a new 'Freestyle' project.

Alternatively you may create a 'Drupal' project which generates a ready-to-use job to review code and run tests on a vanilla Drupal core. If you use this option then you may skip most of the instrutions below: just update the database URL and possibly set up a web server.

4. Configure Source Code Management

Configure the Source Code Management section to fetch a full Drupal code base. Here are a few options:

1. If you just want to run tests on a Drupal core, you may use Git:

• Repository: http://git.drupal.org/project/drupal.git
• Branch Specifier: tags/7.38

2. If your own code repository includes a Drupal core, then just pull it
3. If it does not, then you may combine your own repo with the drupal.org repo using Multiple SCMs
4. Alternatively you may use a Drush Makefile source

By default Jenkins pulls code into the workspace root but you might want to put Drupal into a subdirectory to keep things clean (e.g. $WORKSPACE/drupal):

• If using Git: set option Additional Behaviours / Check out to a sub-directory to drupal
• If using Subversion: set option Local module directory to drupal
• If using a Drush Makefile: set option Drupal root directory to drupal

Note that a Drush Makefile source will fetch the code every time a new build runs. Using a regular source like Git or Subversion is probably more efficient.

Also only Drupal 7 code is supported.

5. Configure Local Web Server

Some tests fail if Drupal does not run behind a web server. Here are a couple of solutions:

• Either install PHP Built-in Web Server (requires PHP >= 5.4.0) e.g.:
• Port: 8000
• Host: localhost
• Document root: drupal (or leave empty if the Drupal root is the workspace root)
• Or install Apache locally and make it point at the Drupal root (e.g. /var/lib/jenkins/jobs/myproject/workspace/drupal)

6. Configure Builds

Add build steps:

• Build a Drupal instance
• Review code on Drupal
• Run tests on Drupal

The default values should work though you need to update a few things:

• Update the database URL in step Build a Drupal instance to point at your database
• If you have checked out Drupal into a subdirectory (e.g. drupal) then update the Drupal root directory of every step accordingly ; otherwise, just leave it empty
• The URI of step Run tests on Drupal should match what you have configured on your webserver (e.g. http://localhost:8000)

Note that if your code base does not include a copy of the Coder module, then step Review code on Drupal will automatically download it into $DRUPAL/modules/.

7. Plot results

Plot Code Review results using Checkstyle:

• Create a post-build action Publish Checkstyle analysis results
• If the logs directory for the code review is logs_codereview then set Checkstyle results to logs_codereview/**
• You might want to set the unstable threshold to 0 normal warning, and the failed threshold to 0 high warning

Plot Test results using JUnit:

• Create a post-build action Publish JUnit test result report
• If the logs directory for the tests is logs_tests then set Test report XMLs to logs_tests/**

8. Build The Project

• Click on Build Now: Jenkins should start reviewing and testing the code base
• After a few builds complete, trend graphs should show up

Dependencies

• drush 7+
• SCM API
• Checkstyle, JUnit and PHP Built-in Web Server (or Apache) are not required but are relevant

Troubleshooting

Q: The plugin is installed but the build steps do not show up
A: Make sure dependencies are installed and up to date

Q: Many tests fail with this kind of error:
Test UserEditedOwnAccountTestCase->testUserEditedOwnAccount() failed:
GET http://localhost/user returned 0 (0 bytes).
in /var/lib/jenkins/jobs/drupal/workspace/modules/user/user.test on line 2047
A: Make sure Drupal runs behind a web server
