Auth0 Advanced Customizations for Universal Login Samples

This monorepo provides production-ready templates for creating custom Auth0 Advanced Customizations for Universal Login (ACUL) screens. Each sample demonstrates different implementation approaches and SDK integrations while following Auth0's design language and user experience patterns.

What is ACUL? Advanced Customizations for Universal Login (ACUL) allows you to build custom, client-rendered versions of Universal Login screens, giving you complete control over your authentication experience. ACUL uses a client/server model where you have full control over the client-side interface while leveraging the security, extensibility, and flexibility of Universal Login's hosted authentication on the server side.

⚠️ Important Notes

  • Enterprise Feature: Requires Enterprise Auth0 plan and verified custom domain

Available Samples

React-JS Sample

  • SDK: Auth0 ACUL JS SDK (@auth0/auth0-acul-js)
  • Screens: 3 authentication screens
    • Login (universal login)
    • Login-ID (identifier-first flow)
    • Login-Password (password entry)
  • Tech Stack: React 19, TypeScript, Vite, Tailwind CSS
  • Development: Integrated context inspector for real-time debugging

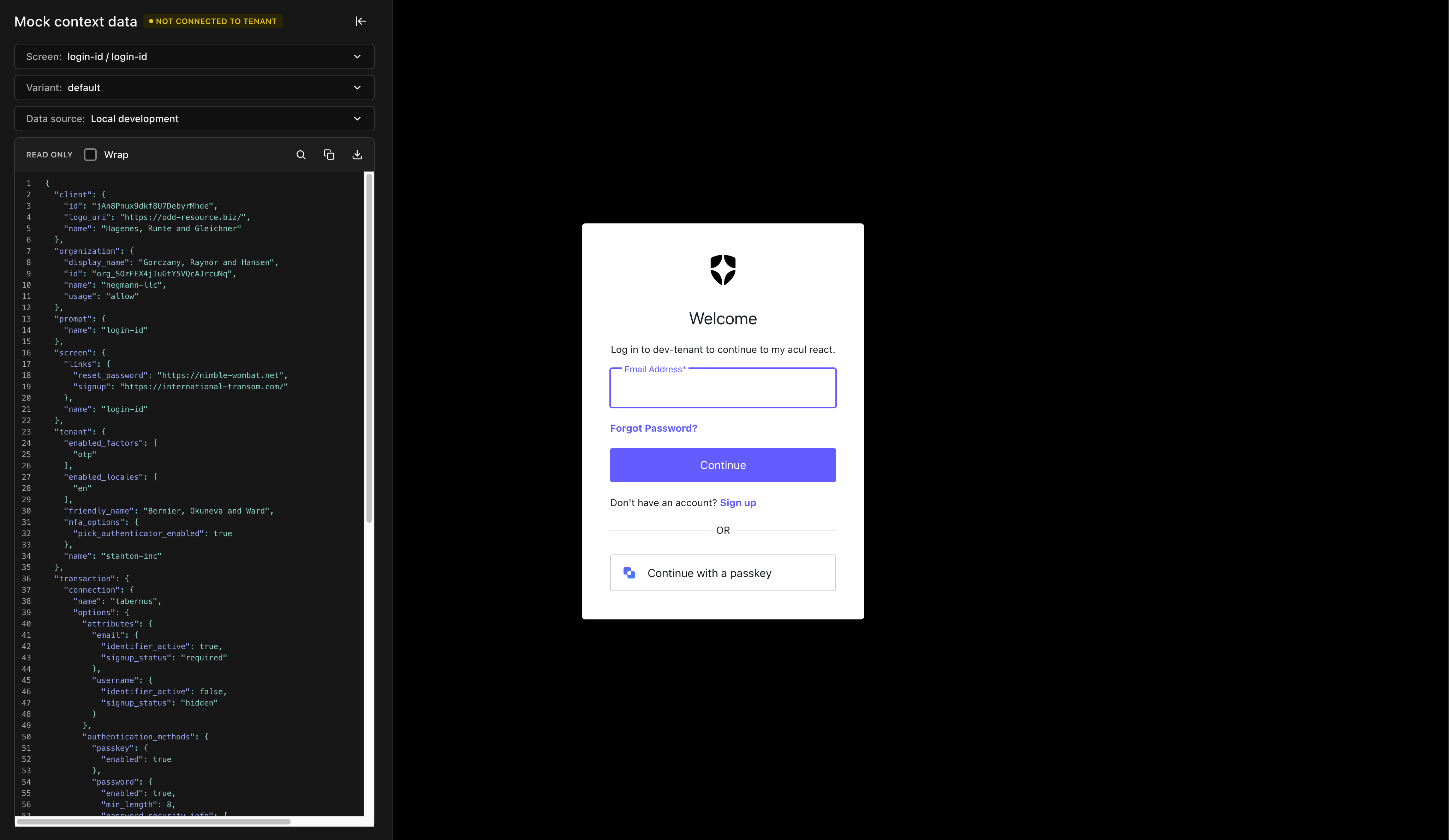

Login ID Screen with mock data

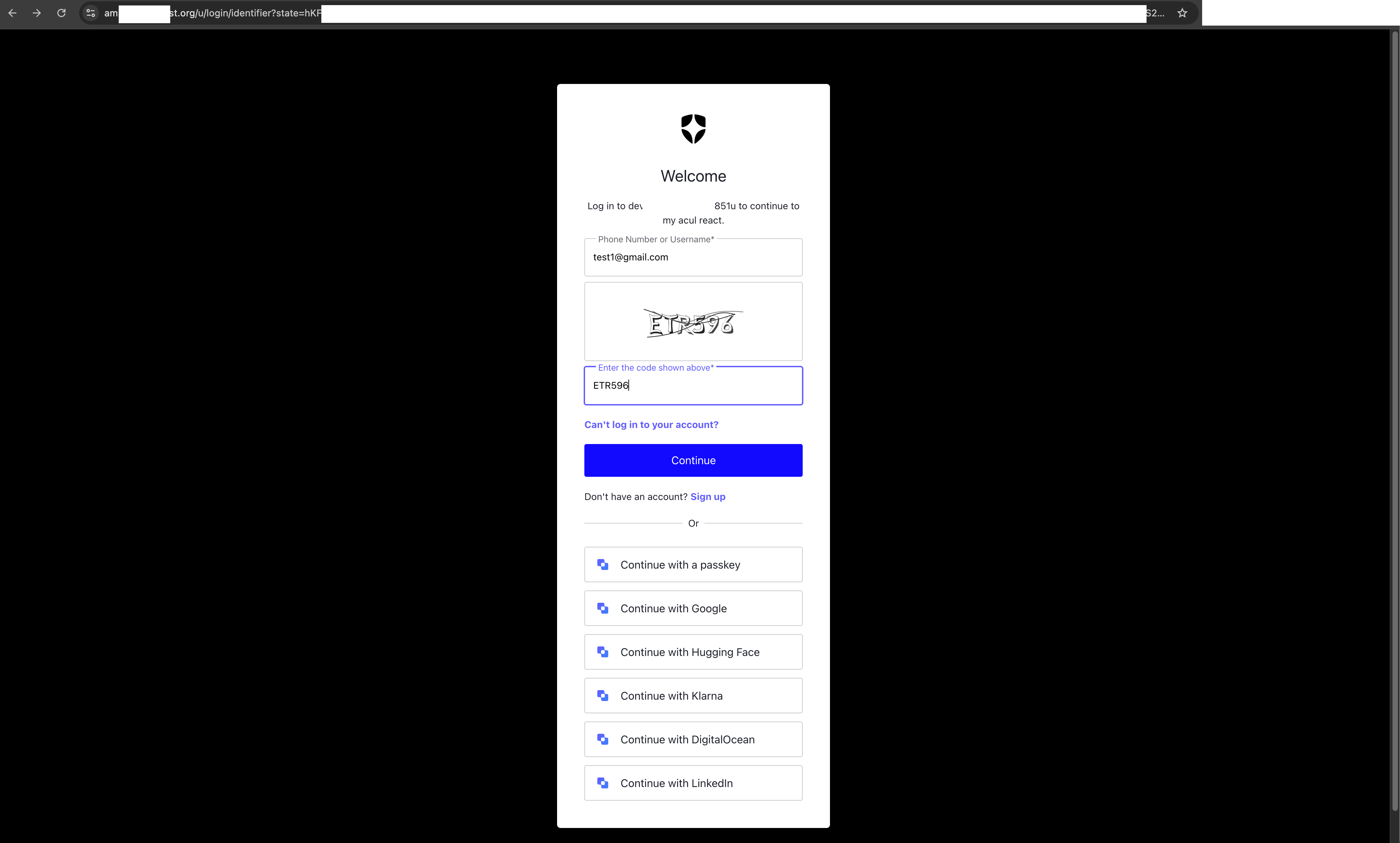

Login-id screen local development with ul-context-inspector 		Login ID Screen deployed with ACUL
Login-id screen production deployment with ACUL

React Sample

  • SDK: Auth0 ACUL React SDK (@auth0/auth0-acul-react)
  • Screens: 31 authentication screens
    • Login & Authentication (5): Login, Login-ID, Login-Password, Login-Passwordless-Email-Code, Login-Passwordless-SMS-OTP
    • Signup & Registration (3): Signup, Signup-ID, Signup-Password
    • Password Reset (4): Reset-Password-Request, Reset-Password-Email, Reset-Password, Reset-Password-Error
    • Multi-Factor Authentication (15): MFA-Begin-Enroll-Options, MFA-Country-Codes, MFA-Email-Challenge, MFA-Email-List, MFA-Enroll-Result, MFA-Login-Options, MFA-Push-Challenge-Push, MFA-Push-Enrollment-QR, MFA-Push-List, MFA-Push-Welcome, MFA-SMS-Challenge, MFA-SMS-Enrollment, MFA-SMS-List, MFA-WebAuthn-Platform-Challenge, MFA-WebAuthn-Platform-Enrollment
    • Passkeys (2): Passkey-Enrollment, Passkey-Enrollment-Local
    • Identifier Management (2): Email-Identifier-Challenge, Phone-Identifier-Challenge
  • Tech Stack: React 19, TypeScript, Vite, Tailwind CSS
  • Development: Integrated context inspector for real-time debugging
Signup Screen with mock data

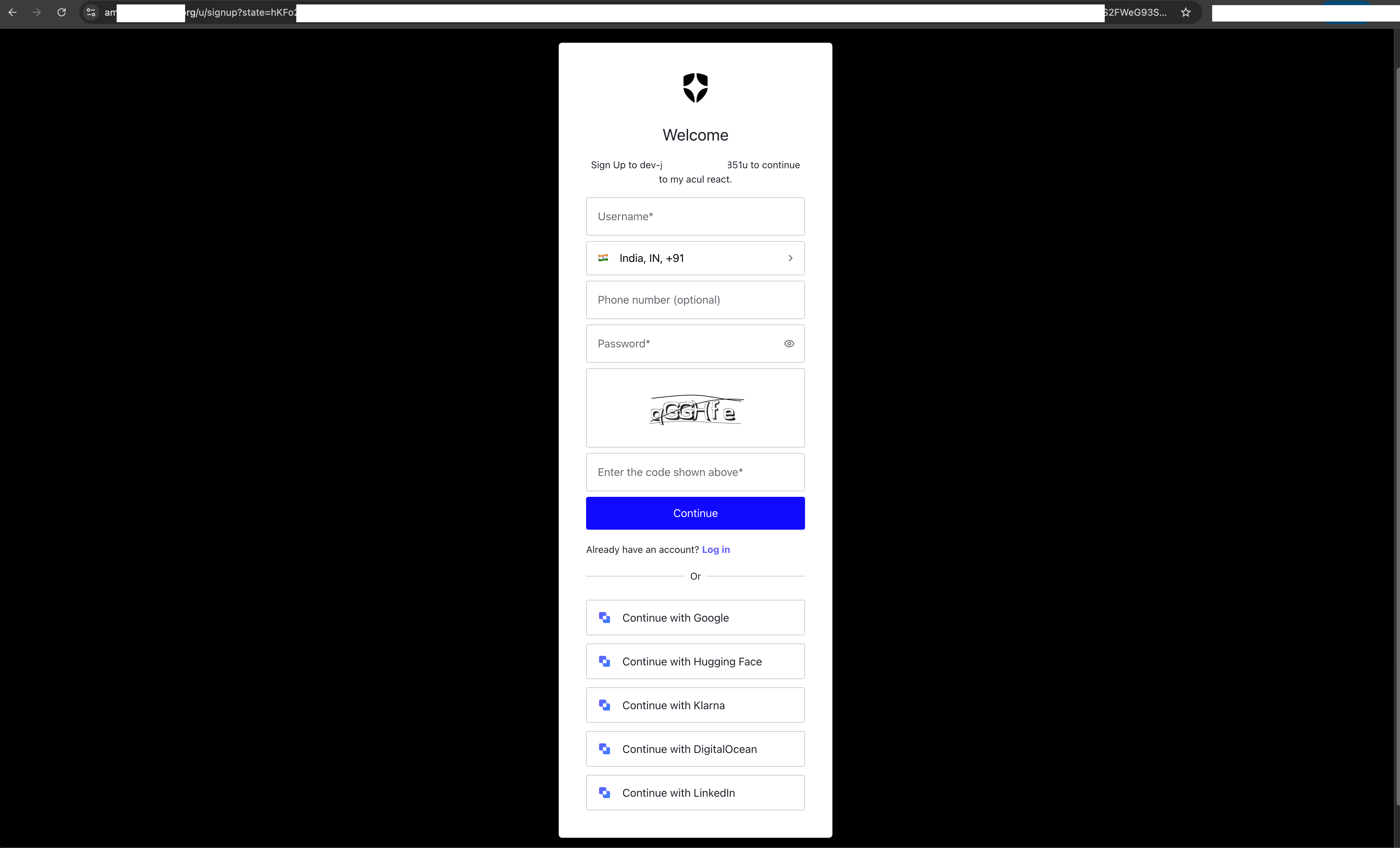

Signup screen local development with ul-context-inspector 		Signup Screen deployed with ACUL
Signup screen production deployment with ACUL

Table of Contents

Quick Start

React-JS Sample (Auth0 ACUL JS SDK)

# Navigate to the React-JS sample
cd react-js

# Install dependencies
npm install

# Start development server with context inspector
npm run dev  # Opens http://localhost:3000

The development server includes an integrated context inspector that lets you visualize and edit the Auth0 Universal Login context in real-time, switch between screens, and test different scenarios.

Development with ul-context-inspector

ul-context-inspector is a developer panel that simulates Auth0's Universal Login context using local mock data, enabling development without an Enterprise Auth0 tenant.

How it works:

  • Development: Loads mock JSON from public/screens/ → No Auth0 connection needed
  • Production: Uses real Auth0 context from window.universal_login_context

Creating Local Mocks

  1. Add screen mocks in public/screens/{prompt}/{screen}/:

    • default.json - Default state
    • with-errors.json - Error state

  2. Register in public/manifest.json:

{
  "versions": ["v2", "v0"],
  "screens": [
    {
      "login": {
        "login": {
          "path": "/screens/login/login",
          "variants": ["default", "with-errors"]
        }
      }
    }
  ]
}
  1. Run npm run dev - screens appear in the inspector automatically!

Prerequisites

For Local Development:

  • Node.js version 22+ (node -v to check)

For Production Use:

  • Auth0 tenant with verified custom domain
  • Enterprise Auth0 plan (for ACUL access)

Open Source Contributors: You can explore and contribute to this codebase without needing an Auth0 Enterprise plan using the development context inspector.

Need to install Node.js?

We recommend using NVM (Node Version Manager):

  • macOS/Linux: curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.3/install.sh | bash
  • Windows: Install nvm-windows
nvm install 22
nvm use 22

Testing with Real Auth0

Once you're ready to test with actual Auth0 authentication:

# Navigate to the React-JS sample
cd react-js

# Build and serve assets locally
npm run build
npx serve dist -p 8080 --cors

# Install Auth0 CLI and configure (Enterprise tenants only)
npm install -g @auth0/auth0-cli
auth0 login

# Configure ACUL with settings file
auth0 ul customize --rendering-mode advanced --prompt login-id --screen login-id --settings-file ./settings.json

About settings.json: This file contains the same ACUL payload configuration as shown in the Build Structure section. It defines how Auth0 should load your custom screen assets, including CSS files, JavaScript bundles, and context configuration. The settings.json file structure is identical to the payload you'd use when configuring ACUL programmatically.

⚠️ Use development/testing tenants only

Screens

The main screen implementations are located in:

Each screen is designed to integrate with the Auth0 ACUL SDK.

Build Structure

About manifest.json: The manifest.json file at the project root defines the available templates and screens for the auth0-cli tool, enabling developers to scaffold projects with auth0 acul init by specifying which files and directories to include for each framework and screen combination.

Vite compiles each screen as a separate entry point for optimized loading:

# Navigate to the React or React-JS sample
cd react  # or cd react-js

# Build optimized assets
npm run build

# Serve locally for testing
npx serve dist -p 8080 --cors

Output Structure:

dist/
├── index.html                           # Main entry point
└── assets/
    ├── main.[hash].js                   # Main application bundle
    ├── shared/
    │   ├── style.[hash].css             # Global styles (Tailwind + Auth0 theme)
    │   ├── react-vendor.[hash].js       # React + ReactDOM (~324 kB)
    │   ├── vendor.[hash].js             # Third-party dependencies (~196 kB)
    │   └── common.[hash].js             # Shared app code (~87 kB)
    └── [screen-name]/
        └── index.[hash].js              # Screen-specific code (0.9-6 kB)

Bundle Strategy:

  • react-vendor: Contains React and ReactDOM for better caching across deploys
  • vendor: Contains all other third-party packages (captcha providers, utilities)
  • common: Shared application code (components, hooks, utilities)
  • Screen bundles: Only screen-specific logic, optimized for fast loading

Screen-specific bundles can be deployed independently for incremental rollouts.

ACUL Payload Configuration Example (settings.json)

When configuring Auth0 ACUL for a specific screen, your settings.json file will reference the built assets:

{
  "rendering_mode": "advanced",
  "context_configuration": [
    "branding.settings",
    "branding.themes.default",
    "screen.texts"
  ],
  "default_head_tags_disabled": false,
  "head_tags": [
    {
      "tag": "base",
      "attributes": {
        "href": "https://your-cdn-domain.com/"
      }
    },
    {
      "tag": "meta",
      "attributes": {
        "name": "viewport",
        "content": "width=device-width, initial-scale=1"
      }
    },
    {
      "tag": "link",
      "attributes": {
        "rel": "stylesheet",
        "href": "https://your-cdn-domain.com/assets/shared/style.[hash].css"
      }
    },
    {
      "tag": "script",
      "attributes": {
        "src": "https://your-cdn-domain.com/assets/main.[hash].js",
        "type": "module"
      }
    },
    {
      "tag": "script",
      "attributes": {
        "src": "https://your-cdn-domain.com/assets/shared/react-vendor.[hash].js",
        "type": "module"
      }
    },
    {
      "tag": "script",
      "attributes": {
        "src": "https://your-cdn-domain.com/assets/shared/vendor.[hash].js",
        "type": "module"
      }
    },
    {
      "tag": "script",
      "attributes": {
        "src": "https://your-cdn-domain.com/assets/shared/common.[hash].js",
        "type": "module"
      }
    },
    {
      "tag": "script",
      "attributes": {
        "src": "https://your-cdn-domain.com/assets/login-id/index.[hash].js",
        "type": "module"
      }
    }
  ]
}

Reference these built assets in your Auth0 ACUL configuration.

Deployment

This repository includes GitHub Actions workflows for automated deployment. See DEPLOYMENT.md for complete setup instructions.

Enabling Screens for Deployment

Control which screens are deployed by modifying react/.github/config/deploy_config.yml:

default_screen_deployment_status:
  "login-id": true # Enable for deployment
  "signup": false # Disable for deployment

Contributing

We welcome contributions! Here's how you can help:

Getting Started:

  1. Fork the repository
  2. Create a feature branch: git checkout -b feature/your-feature-name
  3. Make your changes using the development server: npm run dev
  4. Test thoroughly: npm test
  5. Submit a pull request

What to Contribute:

  • Bug fixes and improvements
  • Documentation updates
  • Test coverage improvements
  • Component enhancements

Development Guidelines:

  • Follow the existing code patterns in react-js/src/screens/ or react/src/screens/
  • Use TypeScript for type safety
  • Follow the Auth0 design system principles
  • Include tests for new functionality
  • Use npm run dev to start the development server with context inspector

Documentation

Troubleshooting

Common Issues

Screen not loading or showing blank page

Symptoms: Browser shows blank page or loading spinner Solutions:

  1. Check browser console for JavaScript errors
  2. Ensure all dependencies installed: npm install
  3. Try clearing browser cache and restarting dev server: npm run dev

Getting Help
