API

xml, json, protobuf

graphql, rest, grpc

参考资料

RESTful Web Services Cookbook 中文版

RESTful Web APIs

O'Reilly经典人气

规范

Google Cloud API Design Guide
Microsoft REST API Guidelines
GitHub API
https://docs.github.com/en/rest?apiVersion=2022-11-28
https://docs.github.com/en/rest/about-the-rest-api/api-versions?apiVersion=2022-11-28
https://docs.github.com/zh/rest/using-the-rest-api/getting-started-with-the-rest-api?apiVersion=2022-11-28
资源, resources
资源嵌套(resource cross references, nested resources)

Pictures

API References

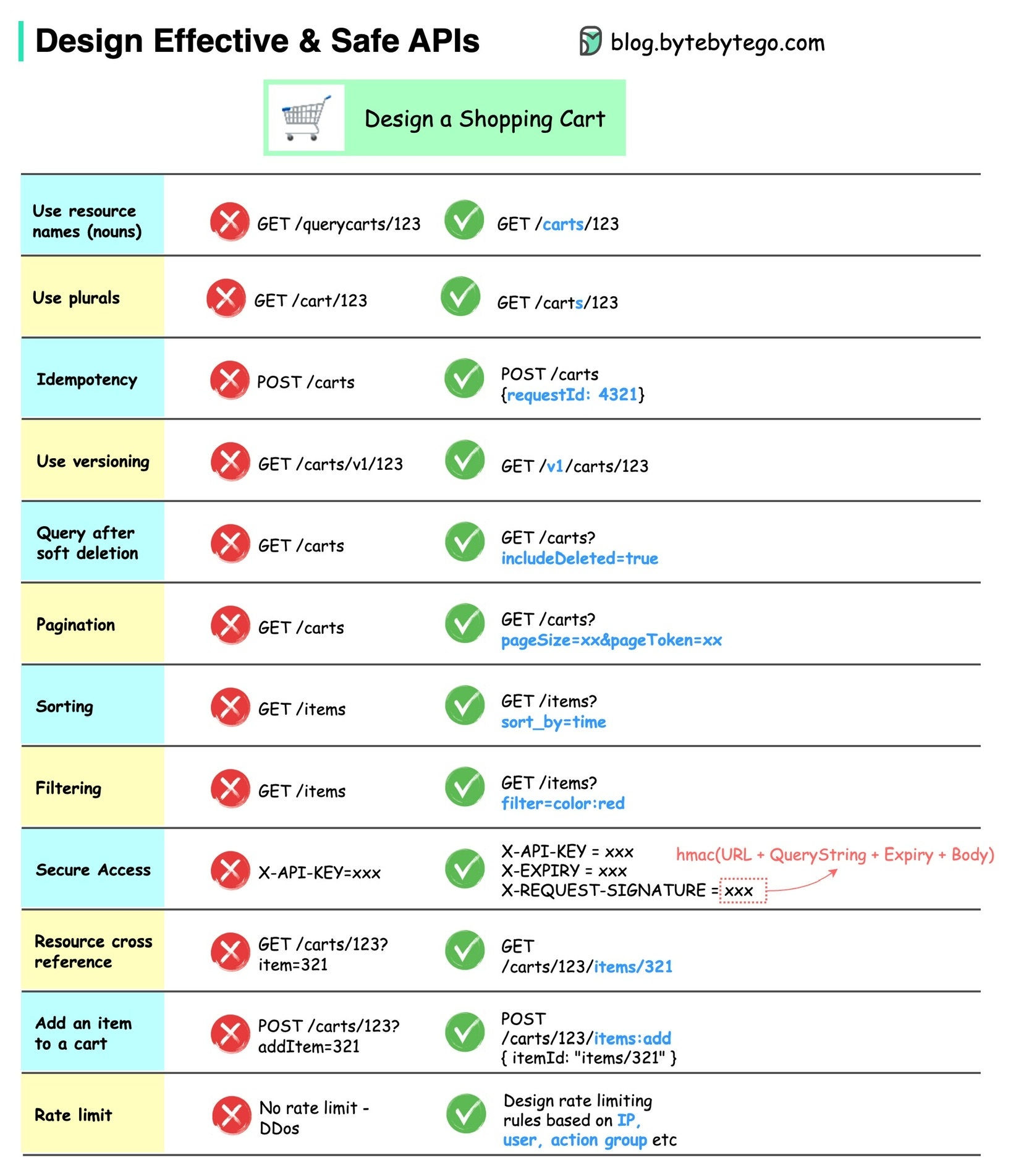

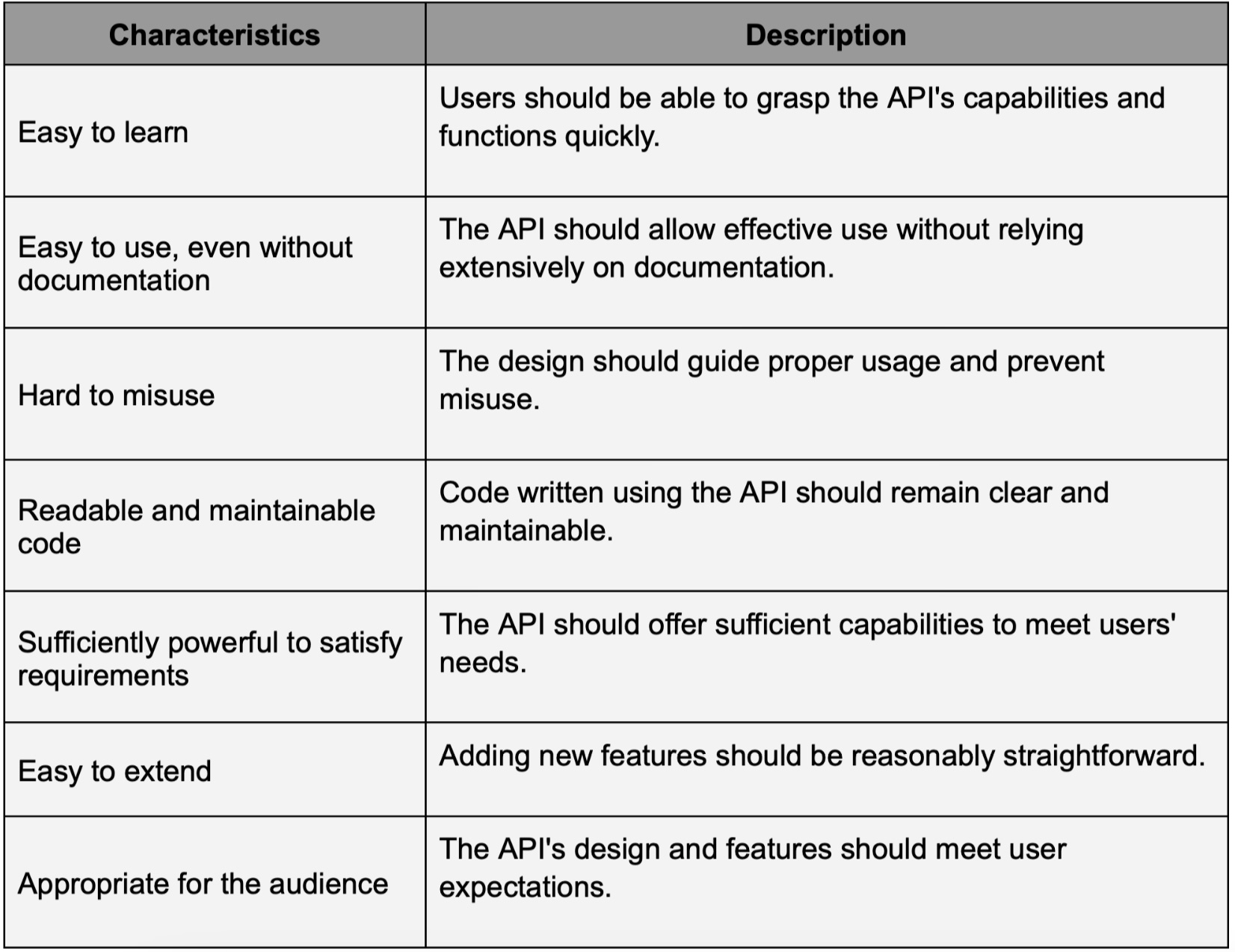

设计原则

Overview

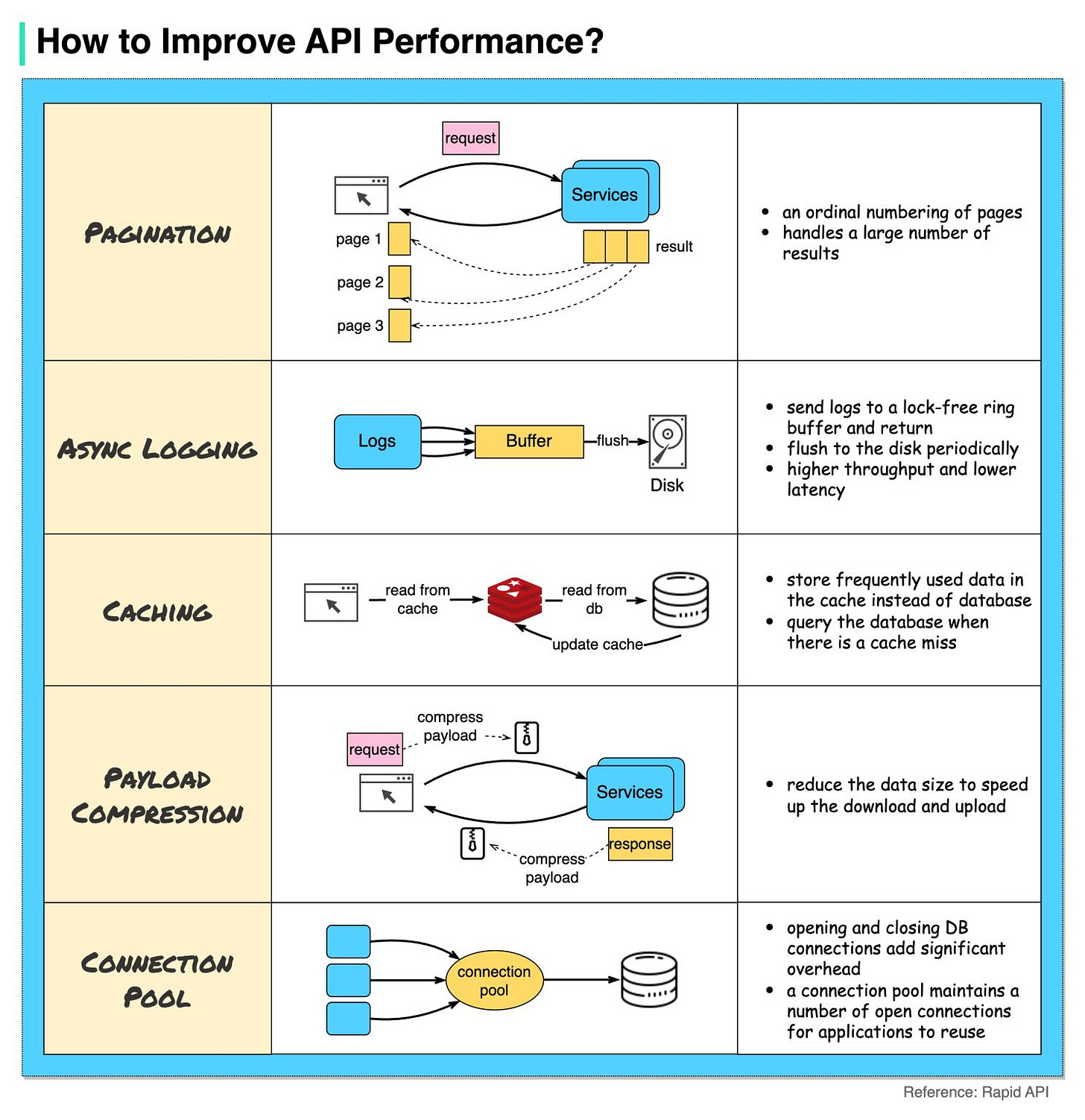

how-to-improve-api-performance

Glossary

API

API types

open/internal api
public api
private api

API types by architecture

monolithic
Microservice
Composite
Unified

API protocols

REST
RPC
GraphQL
soap

基础概念

REST(表述性状态转移, Representational State Transfer): 通过资源的表述改变本地应用状态
- 分布式应用架构风格
- 起源: HTTP object model
- 使用资源表述(API)实现web application状态转移
- 网页通过 REST-表述性状态转移来工作的
- 设计目标: 性能(performance), 可扩展性(scalability), 简单性(simplicity), 可变性(modifiablity),可见性(visibility), 可移植性(portability), 可靠性(reliability).
- 设计风格:
  - client-service architecture
  - statelessness
  - cacheability
  - use of a layered system
  - support for code on demand
  - using a uniform interface
RESTful: 遵循REST风格的Web Service
REST 指的是一组架构约束条件和原则。满足这些约束条件和原则的应用程序或设计就是 RESTful。
资源(Resource): 用URL命名的事物, 使用URL标识一个网络中的资源.
- 每个URL标识一个资源.
表述(Represention): 发送请求所得到的响应, 一个文档.也称资源的表述(Represention of Resource)
- 每发送一条HTTP请求后, 就会收到对应的资源的表述.
- 客户端从来不会直接看到资源, 看到的都是资源的表述.
可寻址性原则: 每个资源都应该有一个属于自己的URL.
HTTP方法
- GET: 请求提供资源的表述
- POST:
  - 对现有资源的注解
  - 发布消息
  - 向数据处理流程提供数据块(如表单提交)
  - 通过追加操作来扩充数据库
表单(form):
短会话(short session):
无状态性(statelessness): Server不会记住Client的状态.
- server不关心client的状态
- 默认属性
RPC(远程过程调用, )
- 分布式应用架构风格
URI(统一资源标识符, Uniform Resource Identifier)
- 用来表示一个地址或是一个名字
- URI是资源的标识符
- 大多数情况下, URI对客户端来说是模糊的(opaque)
URL(统一资源定位器, Uniform Resource Locator)
- :////
Resource(资源): 任意可以用URI来表示的东西
- HTML页面
- JSON
- XML
- 资源可以有一个或多个表述
Represent(表述): 资源信息(状态, 数据或标记)的一种封装
HTTP响应
- 状态码
- 消息体
- 报文头
HTTP统一接口: 介于客户端和资源之间的协议
应用状态(Application State):
- 每个表述都反应了应用程序中用户交互的状态
- 应用程序在请求前或响应后的状态, 每执行一次HTTP请求都应该会发生应用状态转移
- 用户所停留的页面
资源状态(Resource State):
- 从Server的角度看某个client的状态图
超媒体
- REST将超媒体作为应用状态的引擎
Web应用
Web服务

重要观点

今天的Web早已不再仅仅是一个内容发布的平台，它已经发展成为了一个全球范围的计算平台。Web的消费者从以人类用户为主，发展到了人类用户（Web应用）和程序用户（Web服务）并重。而开发Web服务，最佳选择就是RESTful Web Services（REST风格的Web服务），基于SOAP/WSDL的旧式Web Services已经很少有人使用.
Web API设计的最大挑战是:
- 消除 "理解文档的结构" 和 "理解文档的含义" 之间的语义鸿沟
约束带来解放, 自由带来混乱
REST不是一种协议, 也不是一种文件格式, 更不是一种开发框架. 它是一系列约束的集合

资源和表述

万物皆可为资源

参考规范

X/Twitter

x-api

GitHub

https://docs.github.com/en/rest/using-the-rest-api/getting-started-with-the-rest-api?apiVersion=2022-11-28

HTTP method

The HTTP method of an endpoint defines the type of action it performs on a given resource. Some common HTTP methods are GET, POST, DELETE, and PATCH. The REST API reference documentation provides the HTTP method for every endpoint.

For example, the HTTP method for the "List repository issues" endpoint is GET."

Where possible, the GitHub REST API strives to use an appropriate HTTP method for each action.

GET: Used for retrieving resources.
POST: Used for creating resources.
PATCH: Used for updating properties of resources.
PUT: Used for replacing resources or collections of resources.
DELETE: Used for deleting resources.

Microsoft

https://learn.microsoft.com/en-us/graph/use-the-api

http methods

Method	Description
GET	Read data from a resource.
POST	Create a new resource, or perform an action.
PATCH	Update a resource with new values, or upsert a resource (create if resource doesn't exist, update otherwise).
PUT	Replace a resource with a new one.
DELETE	Remove a resource.

For the CRUD methods GET and DELETE, no request body is required.
The POST, PATCH, and PUT methods require a request body, usually specified in JSON format, that contains additional information, such as the values for properties of the resource.

性能优化

最佳实践

零散记录

使用下划线字段, json中, 这样和数据库的字段名更一致

路由方案

POST /students/{student_id}/course-conflicts  # 检查冲突
POST /students/{student_id}/course/add  # 添加
POST /students/{student_id}/courses/{course_id}/grade  # 更新成绩

# action 使用单数+名词/动词
GET https://api.github.com/user/orgs
GET https://api.github.com/search/issues?q={query}{&page,per_page,sort,order}

速率限制(Rate limits)

参考文档

https://platform.openai.com/docs/guides/rate-limits?context=tier-free

路由设计

APP_ENV

# 子资源
/orders/{id}/cancel
/orders/{id}/pay
/users/{id}/reset-password

# 改状态 用更新来表达
	•	PATCH /users/{id}
    •	PATCH /orders/{id}

示例

// 正确返回示例
{
  "status_code": 200,
  "message": "Request successful",
  "data": {
    // ...实际的响应数据...
  },
  "error": null,
  "metadata": {
    // ...额外的元数据，比如分页信息...
  }
}

{
    "code" : 0,
    "success": true,
    "message" : "成功",
    "data": {
         "temporary_id":"12121"; //笔记临时id
        }
}

// 错误返回示例
{
  "status_code": 404,
  "message": "Resource not found",
  "data": null,
  "error": {
    "error_code": "RESOURCE_NOT_FOUND",
    "error_message": "The requested resource does not exist"
  },
  "metadata": null
}

设计原则

HTTP方法

比较

GET-查询(read)

PUT-完整更新或替换(update)

PATCH-部分更新(update)

POST-增加(create)

DELETE-删除(delete)

综合实例

GET 	/device-management/devices : Get all devices
POST 	/device-management/devices : Create a new device
GET /device-management/devices/{id} : Get the device information identified by "id"
PUT 	/device-management/devices/{id} : Update the device information identified by "id"
DELETE	/device-management/devices/{id} : Delete device by "id"

upsert

推荐统一API, 设计时分两种场景, 如果 create严格则只能更新, 如果创建不严格比如爬虫插入数据时则

如果严格区分

可以使用参数显式指定, 或者使用单独的endpoint

PUT /v1/products/{id}?upsert=True  # 推荐

PUT /v1/products/{id}/upsert
PUT /v1/products/upsert

POST /v1/resources:upsert        # Google 明确语义为 upsert



# Upsert 用户
PUT /users/123?upsert=true
{
  "name": "Charlie"
}
-> 200 OK (更新) 或 201 Created (创建)

响应示例

{
	"request": {
    	"params": {}
    },
	"data": {
    	"name": "Furni",
        "business_name": null,
        "timezone": "America/Los_Angeles",
        "timezone_switch_at": "2016-04-06T07:00:00Z",
        "id": "18ce54ayf0z",
        "created_at": "2016-04-07T14:40:15Z",
        "salt": "b88939e5cabbca720159cb3659d73c06",
        "updated_at": "2017-02-08T08:49:53Z",
        "business_id": null,
        "approval_status": "ACCEPTED",
        "deleted": false
	}
}

错误处理

参考文档

Github风格

github

// github 风格 https://docs.github.com/en/rest/overview/resources-in-the-rest-api
{
    "code": "2000",
    "message": "短信发送失败",
    "errors":[
     {
       "resource": "Issue",
       "field": "title",
       "code": "missing_field"
     }
   ],
}

Google风格

google

{
  "eventTime": string,
  "serviceContext": {
    object (ServiceContext)
  },
  "message": string,
  "context": {
    object (ErrorContext)
  }
}

Fields
`eventTime`	`string (Timestamp format)`Time when the event occurred as provided in the error report. If the report did not contain a timestamp, the time the error was received by the Error Reporting system is used.A timestamp in RFC3339 UTC "Zulu" format, with nanosecond resolution and up to nine fractional digits. Examples: `"2014-10-02T15:01:23Z"` and `"2014-10-02T15:01:23.045123456Z"`.
`serviceContext`	`object (ServiceContext)`The `ServiceContext` for which this error was reported.
`message`	`string`The stack trace that was reported or logged by the service.
`context`	`object (ErrorContext)`Data about the context in which the error occurred.

Twitter风格

Twitter

{
  "errors": [
    {
      "parameter": "start_time",
      "details": "invalid date",
      "code": "INVALID_PARAMETER",
      "value": "",
      "message": "Expected time, got \"\" for start_time"
    }
  ],
  "request": {
    "params": {
      "account_id": "hkk5"
    }
  }
}

In the above example, a request to an analytics endpoint was made with an invalid value for the start_time parameter. The errors/code for requests with invalid parameters is INVALID_PARAMETER.

Fields

HTTP Code	Error Code
403	ACCOUNT_LOCKED_OUT
404	ACCOUNT_MEDIA_NOT_FOUND
403	ACCOUNT_NOT_FOUND
403	ACTION_NOT_ALLOWED
404	APP_EVENT_PROVIDER_CONFIGURATION_NOT_FOUND
404	APP_EVENT_TAG_NOT_FOUND
404	BEHAVIOR_OR_BEHAVIOR_EXPANDED_NOT_FOUND
404	CAMPAIGN_NOT_FOUND
408	CANCELLED_REQUEST
404	CARD_NOT_FOUND
403	CURRENT_USER_SUSPENDED
400	DUPLICATE_TWEET
400	EXCLUSIVE_PARAMETERS
400	FEATURE_NOT_AVAILABLE
403	FUNDING_INSTRUMENT_ACCESS_NOT_ALLOWED
403	FUNDING_INSTRUMENT_EXCEEDS_AVAILABLE_CREDIT_LIMIT
404	FUNDING_INSTRUMENT_NOT_FOUND
403	GENERIC_TWEET_ERROR
400	ILLEGAL_CHARACTERS
400	INCLUSIVE_PARAMETERS
500	INTERNAL_ERROR
404	INVALID_APP_ID
404	INVALID_APP_STORE
400	INVALID_DENOMINATION
400	INVALID_FUNDING_INSTRUMENT
404	INVALID_IAB_CATEGORY
404	INVALID_ID_ILLEGAL_CHARACTERS
400	INVALID_IMAGE
400	INVALID_MEDIA
400	INVALID_MEDIA_ID
400	INVALID_PARAMETER
400	INVALID_PLACEMENT_TYPE
400	INVALID_TAILORED_AUDIENCE_TYPE
400	INVALID_TARGETING_TYPE
400	INVALID_TIME_WINDOW
400	INVALID_TV_SHOW_LOCATIONS
400	INVALID_TWEET
400	INVALID_USER
400	INVALID_USER_ID
423	LOCK_ACQUISITION_TIMEOUT
404	LINE_ITEM_APP_NOT_FOUND
404	LINE_ITEM_NOT_FOUND
404	MACT_APP_NOT_FOUND
403	MALWARE_STATUS
404	MEDIA_CREATIVE_NOT_FOUND
404	MEDIA_NOT_FOUND
405	METHOD_NOT_ALLOWED
400	MISSING_PARAMETER
404	NO_PROVIDER_AVAILABLE_FOR_THIS_CLIENT_APPLICATION
404	NOT_FOUND
404	PROMOTABLE_USER_NOT_FOUND
404	PROMOTED_ACCOUNT_NOT_FOUND
404	PROMOTED_TWEET_NOT_FOUND
403	READONLY_CLIENT_APPLICATION
400	REQUEST_TOO_COMPLEX
404	ROUTE_NOT_FOUND
503	SERVICE_UNAVAILABLE
503	OVER_CAPACITY
400	SPEND_EXCEEDS_BUDGET
404	TAILORED_AUDIENCE_CHANGE_FILE_NOT_FOUND
404	TAILORED_AUDIENCE_NOT_FOUND
404	TAILORED_AUDIENCE_OR_TAILORED_AUDIENCE_EXPANDED_NOT_FOUND
404	TARGETING_CRITERION_NOT_FOUND
400	TOO_MANY_CAMPAIGNS
400	TOO_MANY_LINE_ITEMS
429	TOO_MANY_REQUESTS
400	TV_SHOW_OUTSIDE_MARKET
400	TWEET_CANNOT_BE_BLANK
403	TWEET_IS_SPAM
404	TWEET_NOT_FOUND
429	TWEET_RATE_LIMIT_EXCEEDED
401	UNAUTHORIZED_ACCESS
403	UNAUTHORIZED_CLIENT_APPLICATION
400	UNKNOWN_CARD_TYPE
400	UNKNOWN_CRITERIA_TYPE
403	USER_NOT_FOUND
404	WEB_EVENT_TAG_NOT_FOUND

code

{
    "error": {
        "code": 503,
        "message": "No capacity available for model gemini-3-pro-high on the server",
        "status": "UNAVAILABLE",
        "details": [
            {
                "@type": "type.googleapis.com/google,rpc.Errorinfo",
                "reason": "MODEL CAPACITY EXHAUSTED",
                "domain": "cloudcode-pa.googleapis.com",
                "metadata": {
                    "model": "gemini-3-pro-high"
                }
            },
            {
                "@type": "type.googleapis.com/google.rpc.Retrylnfo",
                "retryDelay": "39s"
            }
        ]
    }
}
